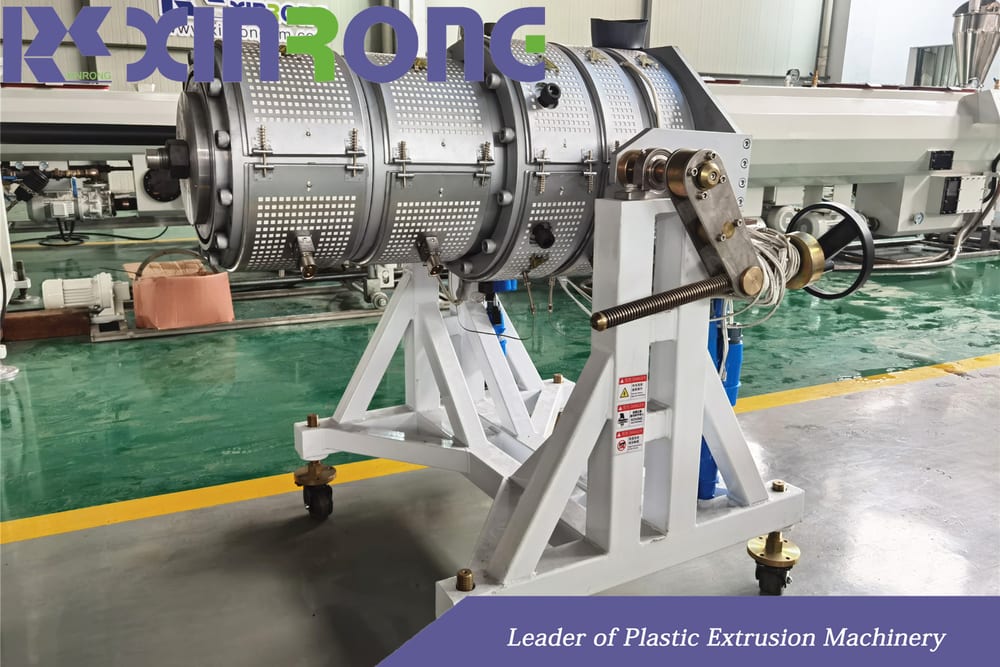

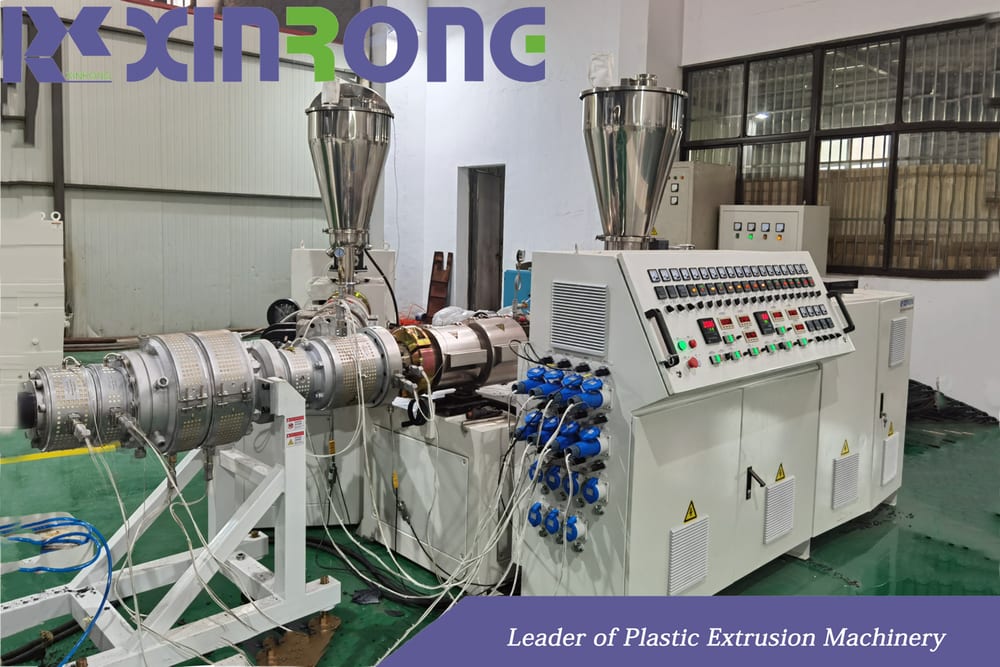

Conical twin screw and parallel twin screw (28:1, 36:1) extruders are for choice.

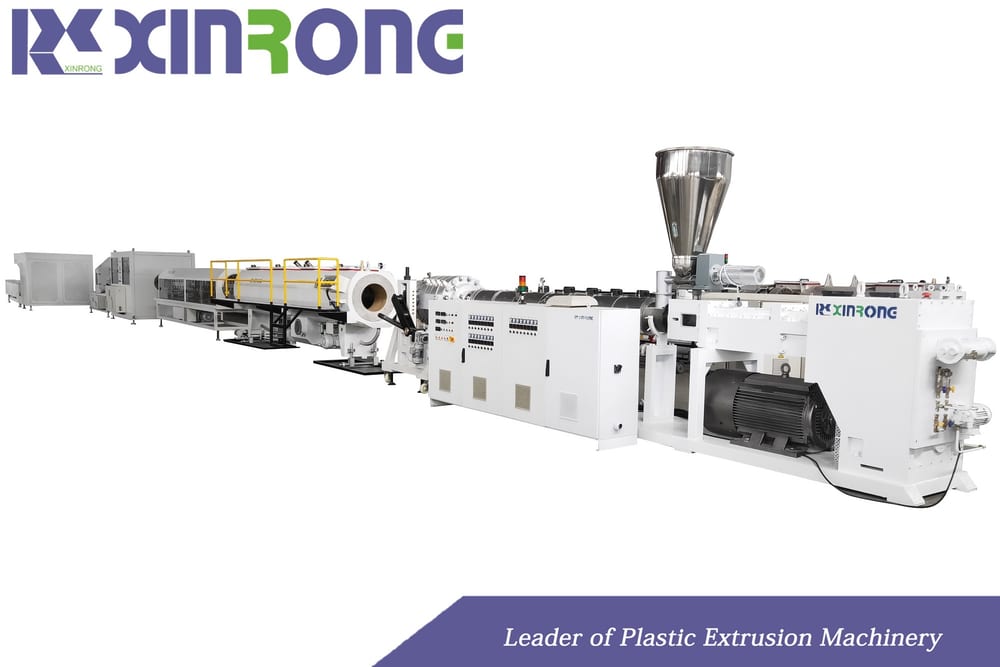

PVC Pipe Extrusion Line
Our PVC pipe extrusion machine can produce PVC pipe size range from Ø 16 to Ø 1000mm.
PVC pipes can be used for water supply, water drainage, liquid transportation, electric conduit, etc.
We have different kinds of PVC pipe making machine to produce different kinds of PVC pipes: UPVC pipe, CPVC pipe, PVC-O pipe, PVC-M pipe, etc.
We can provide different PVC pipe extrusion lines: normal or high speed, single or multi-layer, single or double strand.
In addition, we can provide turnkey solution with auxiliary machinery such as mixer, shredder, crusher and pulverizer, etc.
Machine Video
Machine Main Feature

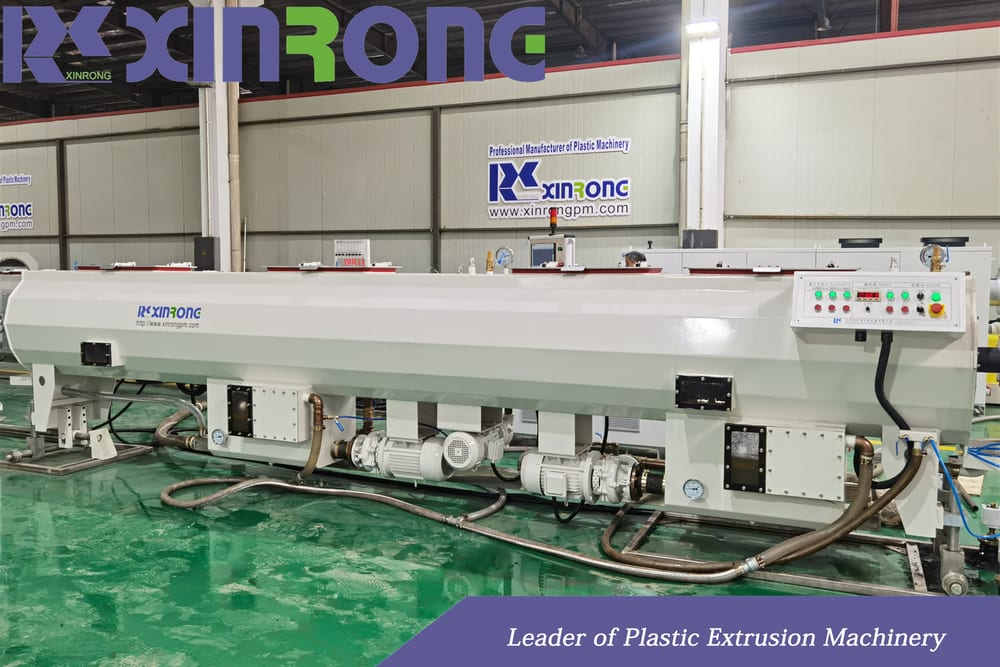

Vacuum tank can be equipped with automatic vacuum degree control system, to realize automatic water level and vacuum degree control, also reduce power consumption in long run.

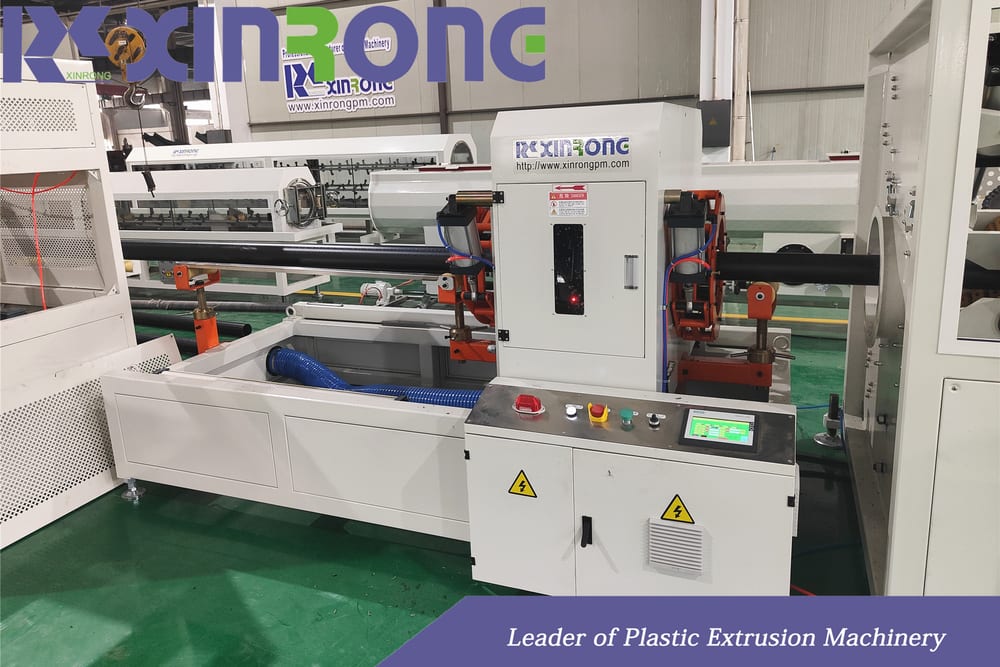

Swarfless knife cutter and planetary saw cutter are for choice, both cutters are with chamfering function.
Weightless feeding system is for choice, it can make operation easier, control pipe wall thickness and meter weight accurately, also can show the power consumption per unit weight for the pipe.
By changing some parts, extrusion line can also produce CPVC pipe, PVC-O pipe, PVC-M pipe, etc.
By changing some parts, extrusion line can produce single layer or multi-layer, single strand and double strand pipe.
Technical Specifications
| Model | Pipe Range (mm) | Output Capacity (kg/h) | Main Motor Power (kW) |
|---|---|---|---|
| PVC32SS* | (Ø16 - 32) x 4 | 180 - 250 | 22 - 37 |
| PVC63 | Ø16 - 63 | 180 - 250 | 22 - 37 |
| PVC63S* | (Ø16 - 63) x 2 | 250 - 450 | 37 - 55 |
| PVC110 | Ø20 - 110 | 250 - 450 | 37 - 55 |
| PVC160 | Ø50 - 160 | 250 - 450 | 37 - 55 |
| PVC250 | Ø75 - 250 | 450 - 750 | 55 - 75 |
| PVC450 | Ø110 - 450 | 450 - 1000 | 55 - 110 |
| PVC630 | Ø250 - 630 | 800 - 1200 | 110 - 132 |
| PVC800 | Ø315 - 800 | 1200 - 1300 | 132 - 160 |
| PVC1000 | Ø400 - 1000 | 1300 | 160 |
