Parameters are directly input into the touch screen and the working steps are completed by the machine itself.

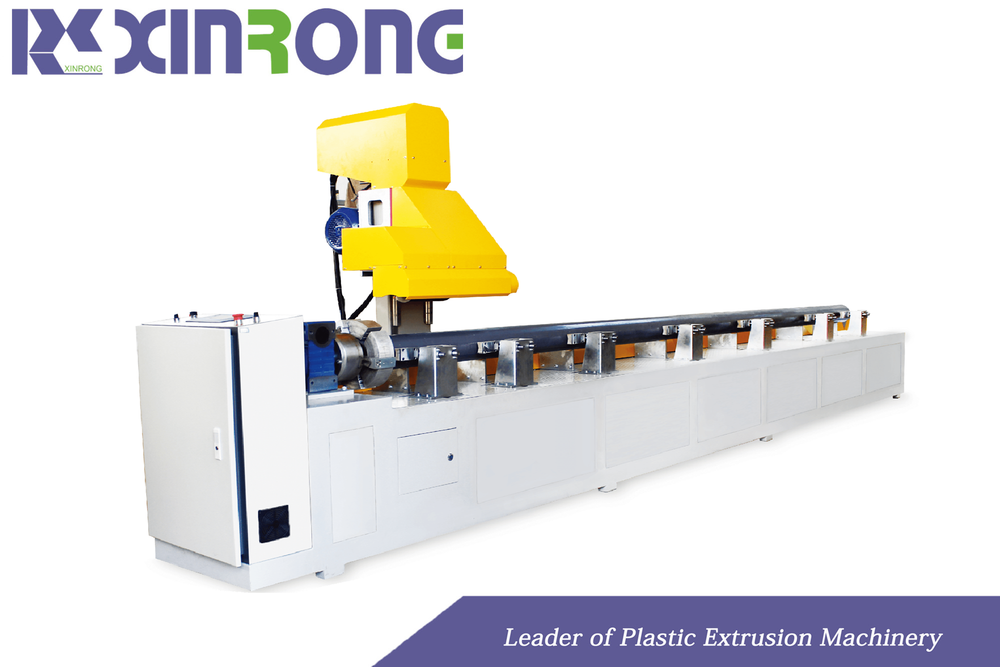

Automatic Pipe Drilling/Slotting Machine
Our pipe drilling/slotting machine can produce pipe size range from Ø50-630mm.

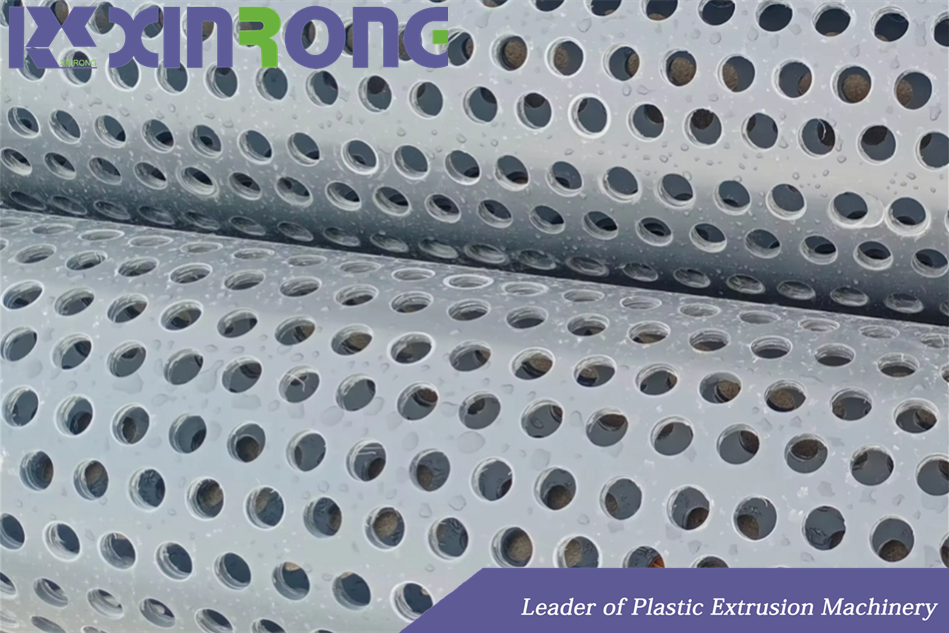

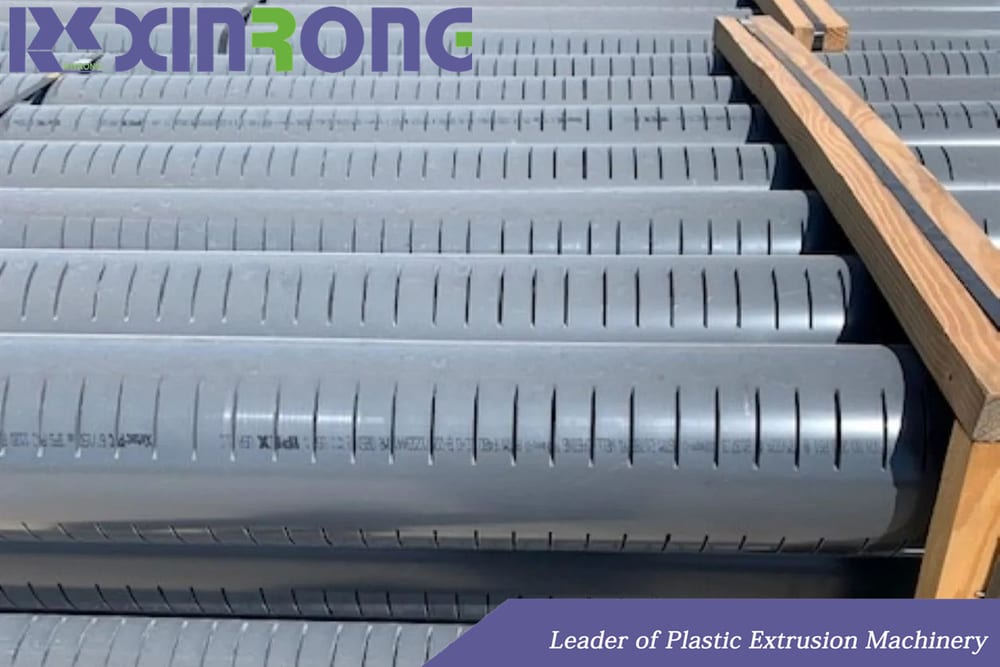

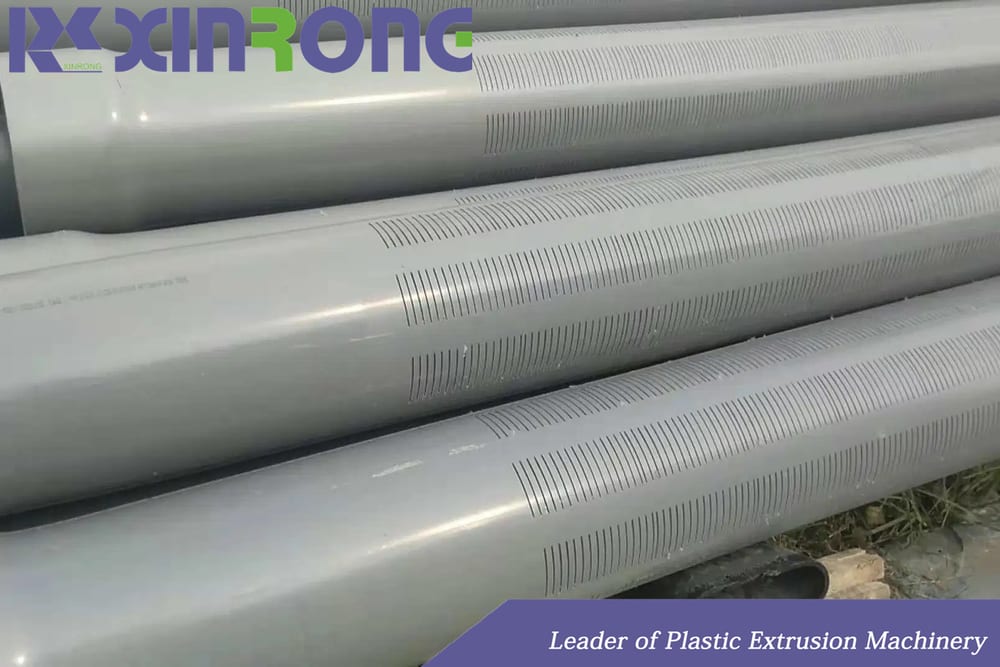

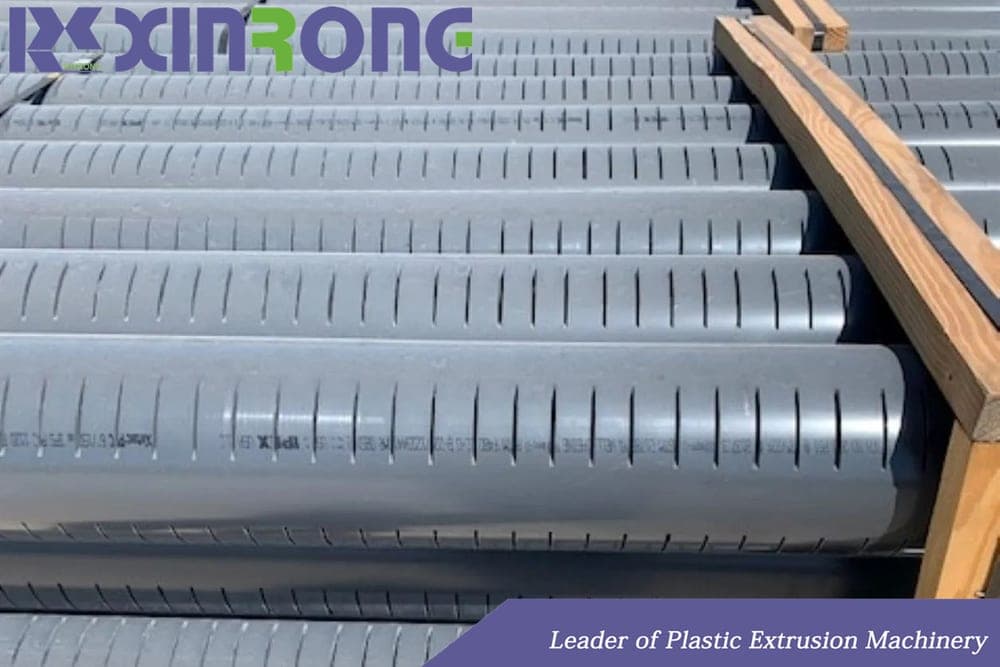

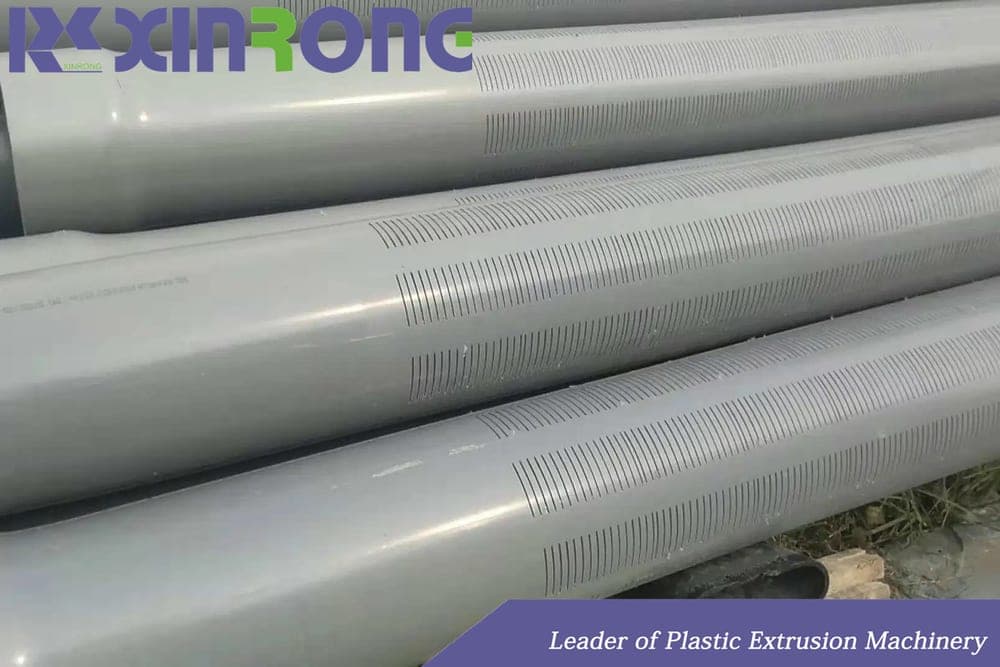

The machine can drill or slot on pipe surface fully automatically.
The pipe are mainly used for water well, water pollution remove, water collection and filtration.
The whole machine is controlled by PLC and servo control system, with high automation, stable and reliable, lower power consumption, suitable for different pipe diameter and length.
Machine Video
Machine Main Feature
Equip with double cutting stations, can increase production speed dramatically.
Cutting station is well designed, and the sawdust falls directly into the collection box and is collected by the swarf extraction device.
Quick pipe diameter and cutting blade changeover.
Technical Specifications
| Model | Pipe Diameter Range (mm) | Pipe Length (m) | Number of drill/saw | Remark |
|---|---|---|---|---|
| XRJ160 | Ø50 - 160 | Customize according to requirement | Customize according to requirement | Can drill holes, making horizontal or vertical grooves according to requirement |
| XRJ250 | Ø75 - 250 | Customize according to requirement | Customize according to requirement | Can drill holes, making horizontal or vertical grooves according to requirement |
| XRJ400 | Ø160 - 400 | Customize according to requirement | Customize according to requirement | Can drill holes, making horizontal or vertical grooves according to requirement |
| XRJ630 | Ø250 - 630 | Customize according to requirement | Customize according to requirement | Can drill holes, making horizontal or vertical grooves according to requirement |
