Twin Screw Extruder
Conical or parallel twin screw systems matched to UPVC, CPVC, PVC-M and PVC-O pipe requirements.

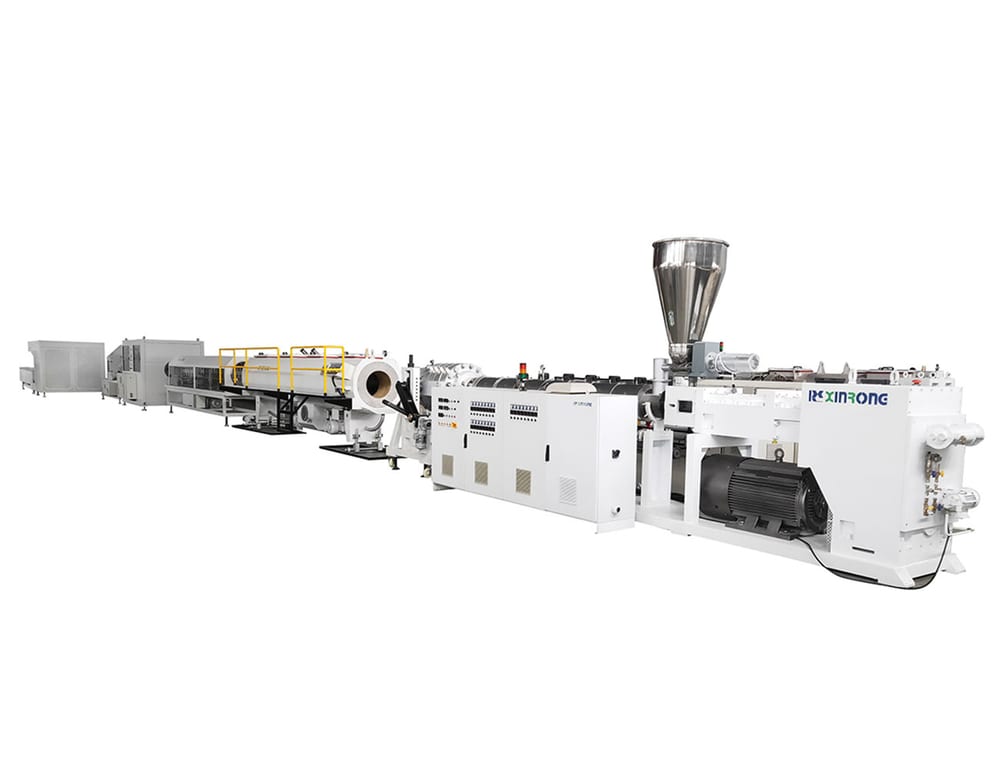

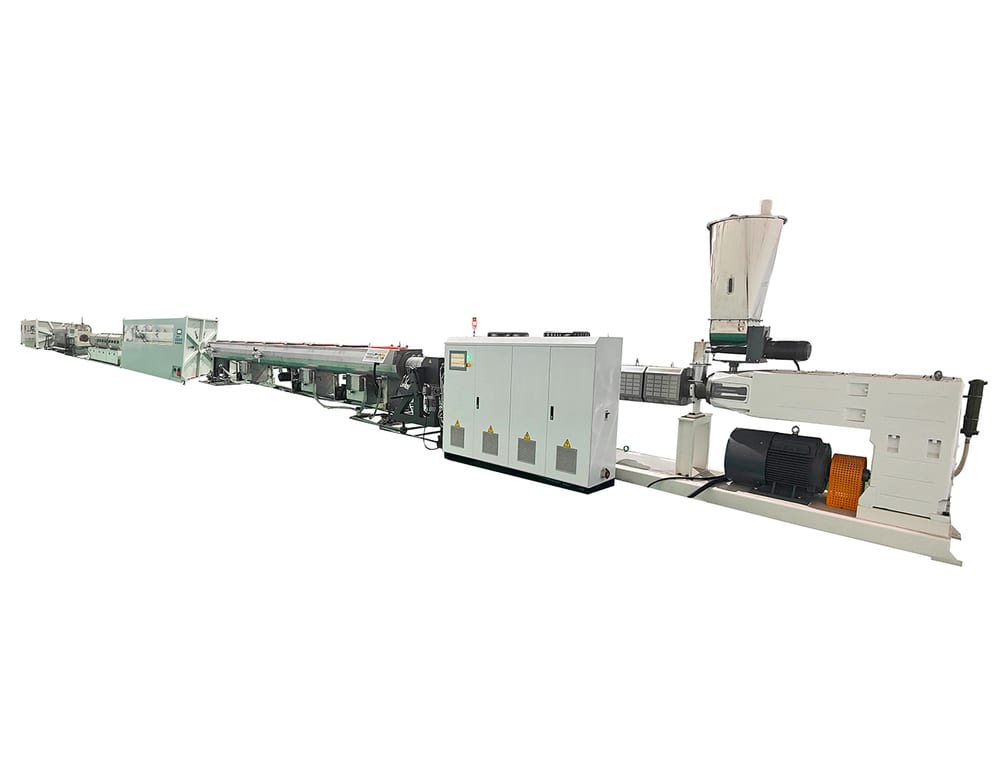

PVC Pipe Extrusion Line Manufacturer
Build a stable UPVC, CPVC, PVC-M or PVC-O pipe production line with a manufacturer focused on extrusion machinery since 1996.
Turnkey extrusion systems
Ø16-1000mm pipe range
PLC automation and dosing options
Ø16-1000mmPVC pipe range
180-1300kg/hOutput capacity
1996Manufacturing since
12hEngineering response
Engineered for PVC pipe production that has to run every day.
Xinrongplas configures PVC pipe making machines for water supply, drainage, conduit and industrial pipe applications. Each line can be matched to your formulation, pipe diameter, output target and downstream automation requirements.
Single or multi-layer pipe productionSingle, double or four-strand line layoutsUPVC, CPVC, PVC-M and PVC-O pipe capabilityTurnkey auxiliary machinery availableRemote diagnosis and long-term spare parts supportOn-site installation, commissioning and training
Line Configuration

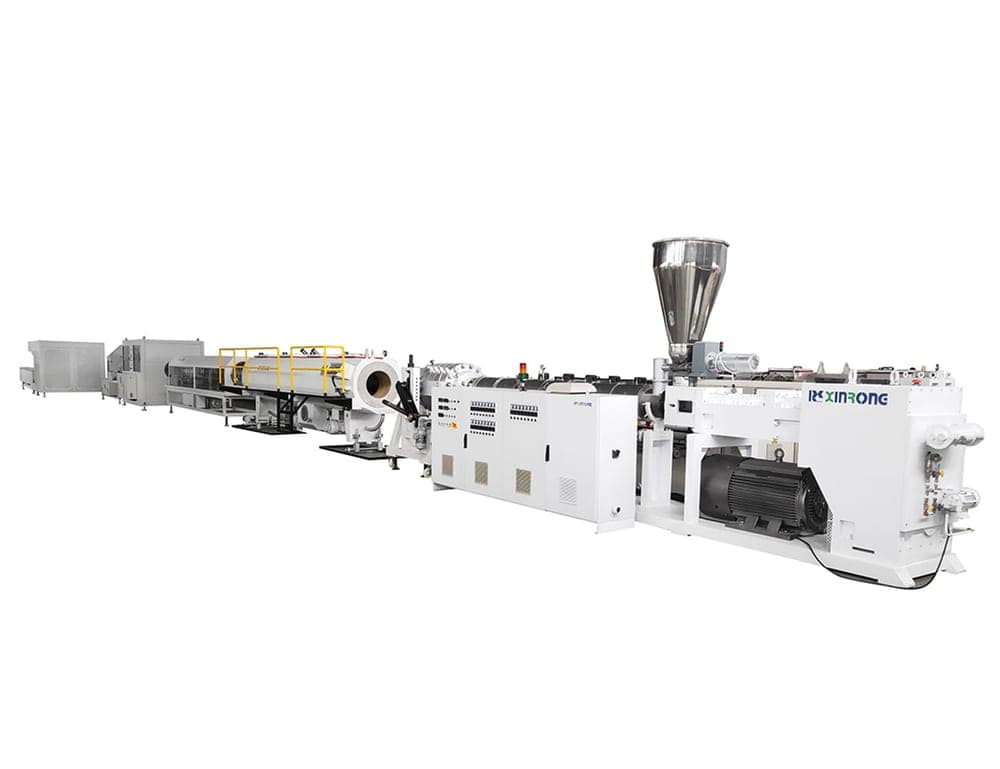

Core equipment for a complete PVC pipe extrusion line
Vacuum Calibration Tank
Automatic vacuum and water-level options help stabilize pipe forming while reducing long-run power use.
Haul-off and Cutter
Planetary saw or swarfless cutter options with chamfering for clean, repeatable pipe finishing.
PLC Control System
Touch screen control, linked automation and optional weightless feeding for easier operation and wall-thickness control.
Technical Range
Choose the line size around your pipe market.
From small multi-strand conduit lines to large-diameter pressure and drainage pipe systems, the model range can be adjusted around output, power and automation level.
Download Catalog| Model | Pipe Range | Output | Main Motor |
|---|---|---|---|
| PVC32SS* | (Ø16 - 32) x 4 | 180 - 250 kg/h | 22 - 37 kW |
| PVC63 | Ø16 - 63 | 180 - 250 kg/h | 22 - 37 kW |
| PVC63S* | (Ø16 - 63) x 2 | 250 - 450 kg/h | 37 - 55 kW |
| PVC110 | Ø20 - 110 | 250 - 450 kg/h | 37 - 55 kW |
| PVC160 | Ø50 - 160 | 250 - 450 kg/h | 37 - 55 kW |
| PVC250 | Ø75 - 250 | 450 - 750 kg/h | 55 - 75 kW |
| PVC450 | Ø110 - 450 | 450 - 1000 kg/h | 55 - 110 kW |
| PVC630 | Ø250 - 630 | 800 - 1200 kg/h | 110 - 132 kW |
| PVC800 | Ø315 - 800 | 1200 - 1300 kg/h | 132 - 160 kW |
| PVC1000 | Ø400 - 1000 | 1300 kg/h | 160 kW |
Project Delivery01 02 03 04
From first specification to stable factory production.
Line planning
Confirm pipe range, output target, workshop layout and local production requirements.
Manufacturing
Build the extrusion line with controlled procurement, machining, assembly and QC inspection.
Factory test
Run machine inspection and testing before packing, with customer acceptance when required.
Commissioning
Provide installation, training, remote diagnosis and long-term service after delivery.
Quality control before delivery
Purchased parts, machining, assembly and final test runs are checked before the machine is packed for shipment.
Customized around your plant
The line can be matched to material formula, pipe standards, local voltage, workshop layout and auxiliary equipment.
Long-term technical service
Engineers support installation, commissioning, training, remote diagnosis and spare parts throughout the machine lifecycle.
Get Your PVC Pipe Line Proposal
Send your pipe diameter, output target and application. Our engineers will reply with a suitable configuration and investment reference.
