This is another equipment independently developed by our company for 8 years.

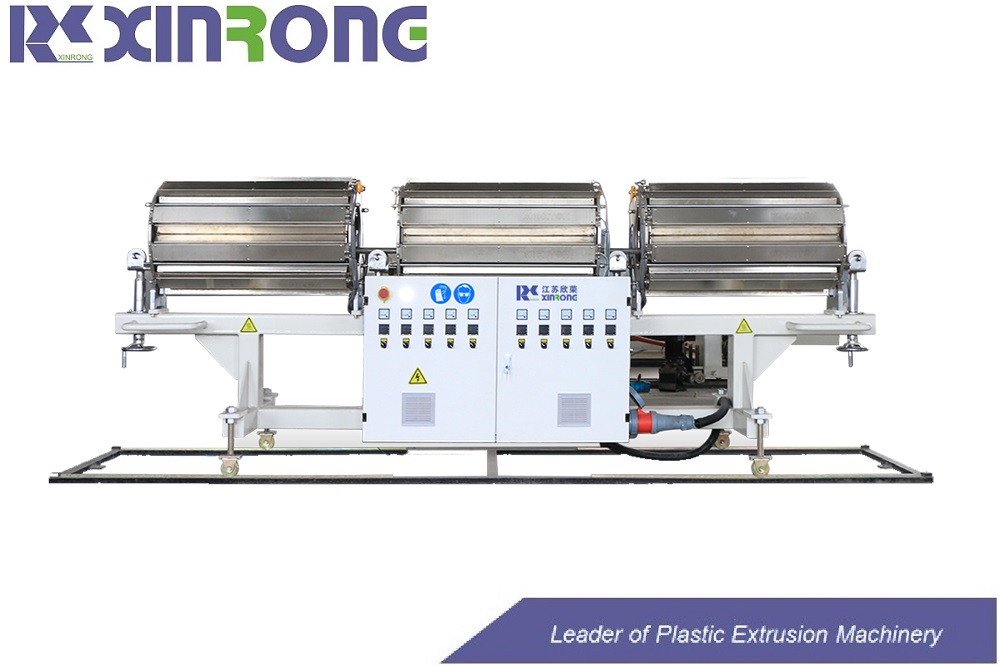

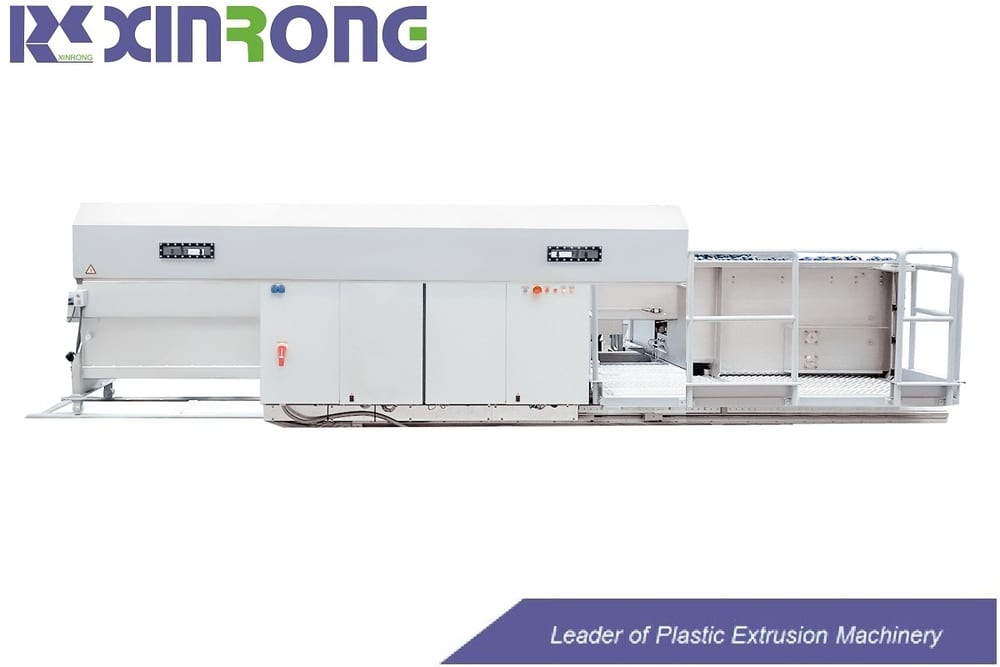

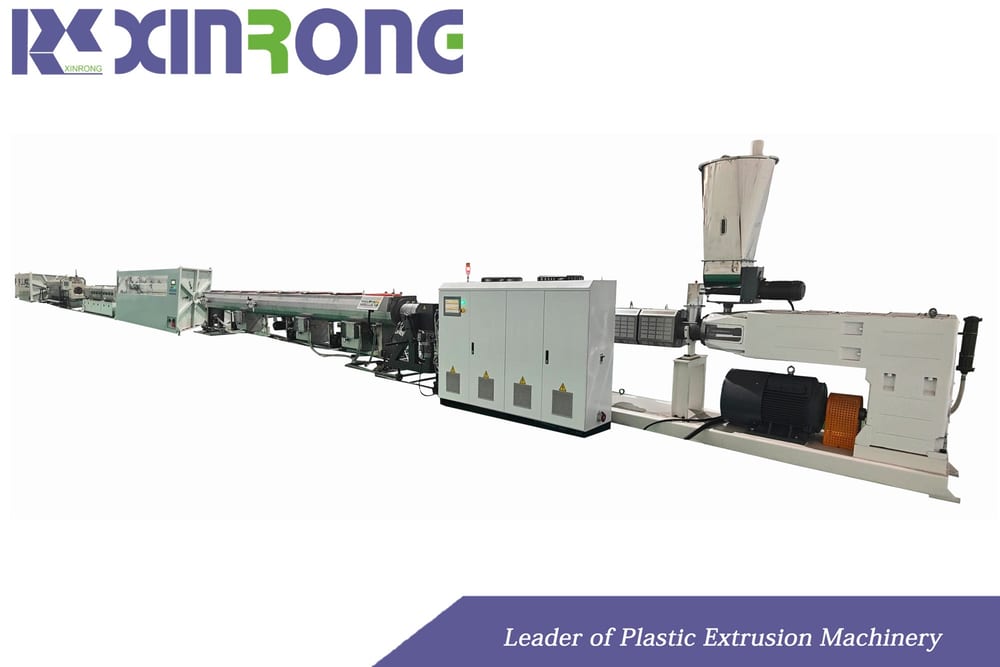

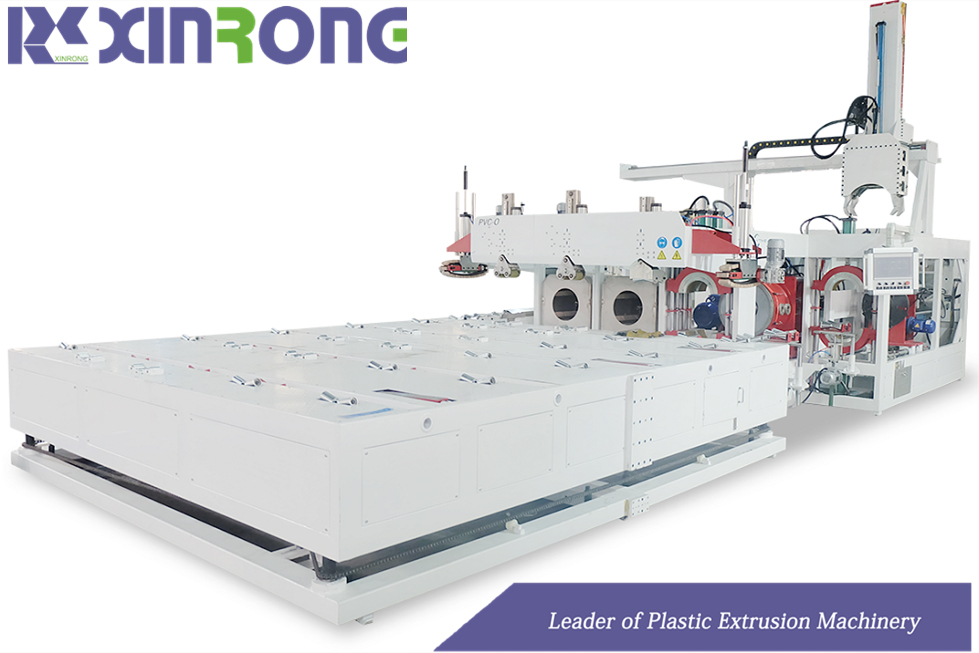

PVC-O Pipe Extrusion Line
Our PVC-O pipe extrusion machine can produce PVC-O pipe size range from Ø90 to Ø630mm for PN5 to 25, and Material Class 315 to 500.
PVC-O pipe, biaxially oriented polyvinyl chloride pipe, can be used for water supply, mining, gas supply, etc.
We use one step forming method to produce PVC-O pipe which has advantage of less space, low electricity and labour cost, less material waste.
We can provide turnkey solution with auxiliary machinery such as mixer, shredder, crusher and pulverizer, etc.
Machine Video
Machine Main Feature
Real-time feedback of important data on pipe production makes it easy to adjust pipe production process.
With complete process storage function to facilitate future pipe production.
The entire line is highly automated, and the wall thickness is automatically adjusted through gravimetric dosing system and PLC to reduce material waste.
Equipped with a remote diagnosis system. When problems occur, we will provide customers with quick guidance and troubleshooting services based on the equipment operating parameters.
Technical Specifications
| Model | Pipe Range (mm) | Material Class/MRS (max) | Main Motor Power (kW) |
|---|---|---|---|
| PVC-O160 | Ø90 - 160 | 500 | 37 |
| PVC-O200 | Ø110 - 200 | 500 | 45 |
| PVC-O400 | Ø200 - 400 | 500 | 75 |
| PVC-O500 | Ø250 - 500 | 500 | 90 |
| PVC-O630 | Ø315 - 630 | 500 | 110 |
