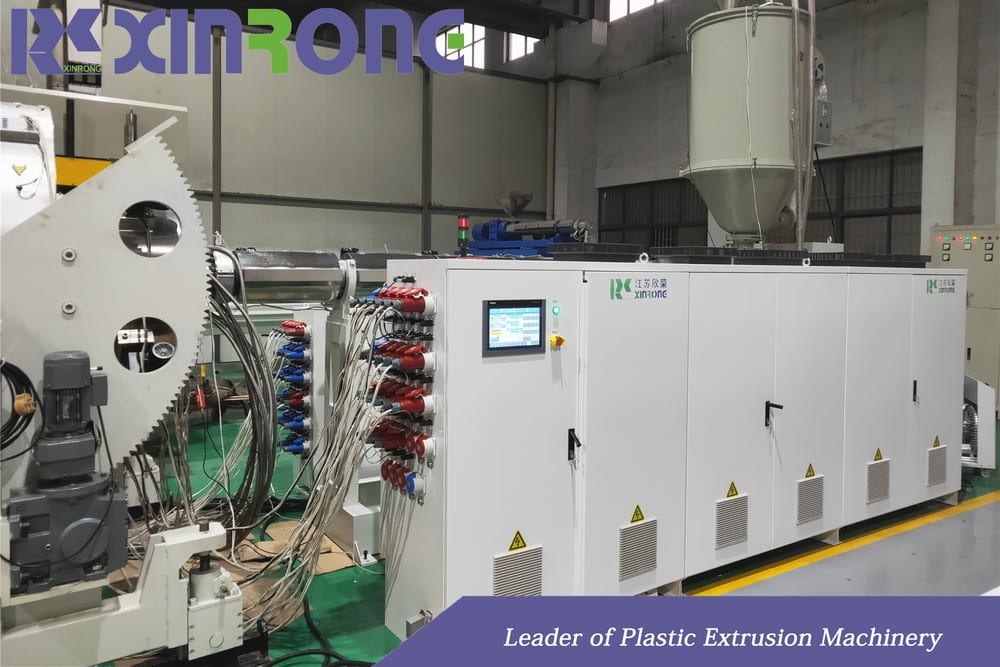

Whole extrusion line adopts touch screen and PLC control, linked to achieve high degree of automation.

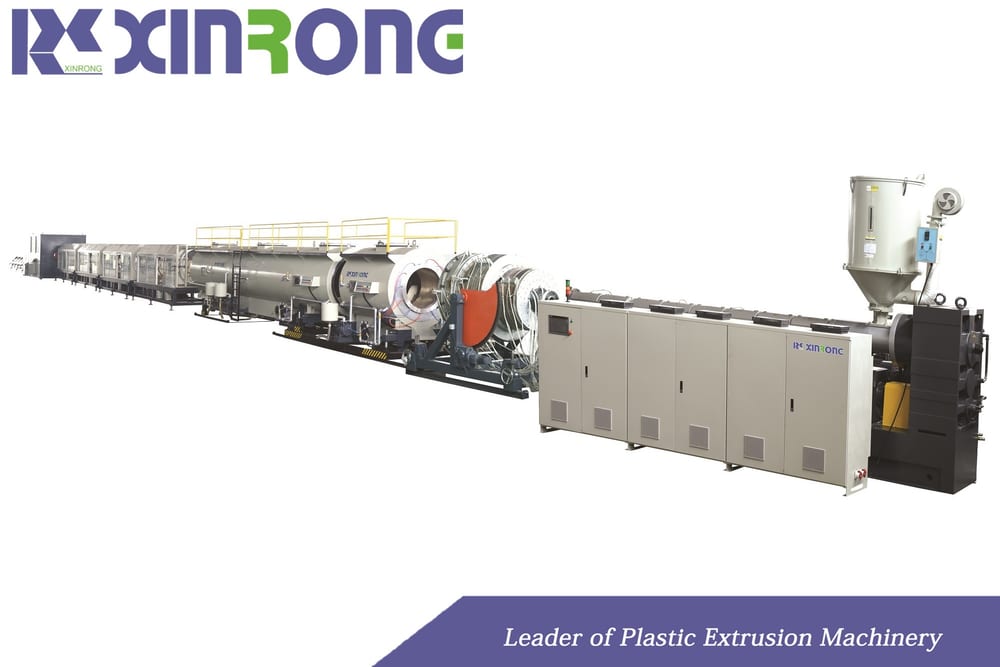

PE Pipe Extrusion Line
Our PE pipe extrusion machine can produce PE size range from Ø 16 to Ø 2000mm.
PE pipes can be used for water supply, gas supply, water drainage, liquid transportation, electric conduit, etc.
Our PE pipe extrusion machine can process different kinds of PO materials: PP, PPR, PERT, PB, PEX-B, etc.
We can provide different PE pipe extrusion lines: normal or high speed, single or multi-layer, single or double strand.
In addition, we can provide turnkey solution with auxiliary machinery such as mixer, shredder, crusher etc.
Machine Video
Machine Main Feature
Screw with L/D ratio 38:1 or 40:1, can realize high output extrusion with low melt temperature and low power consumption.
Die head with core cooling, also with air cooling inside pipe, to have good pipe forming.

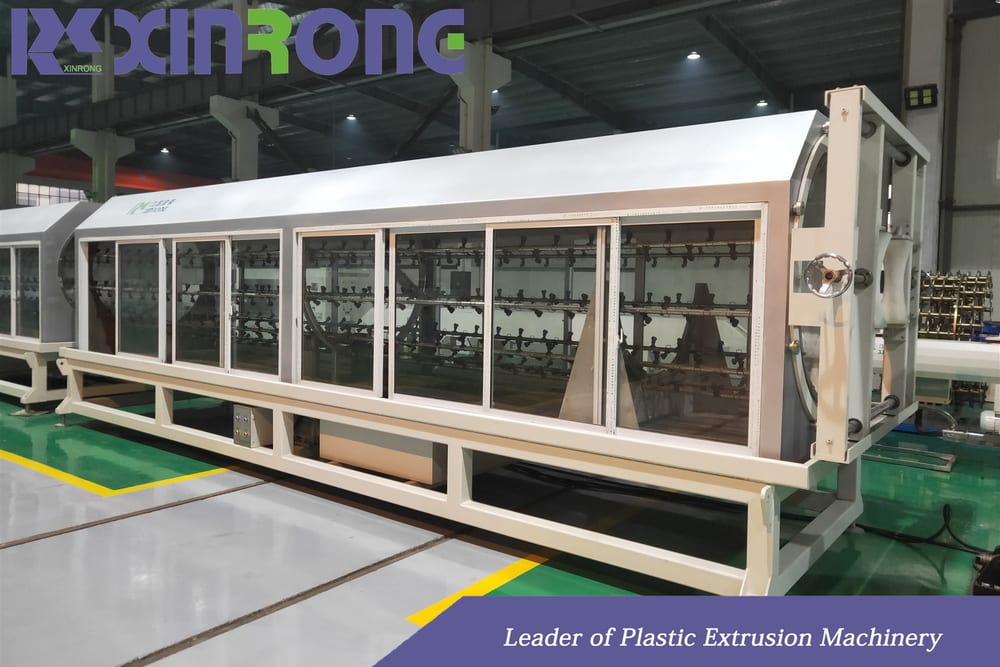

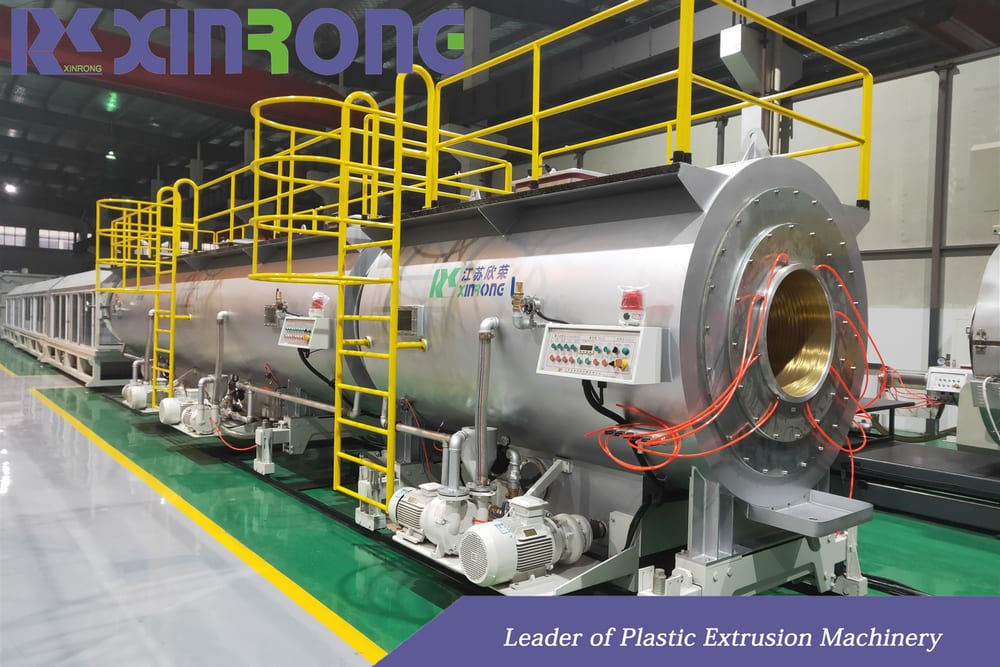

Vacuum tank can be equipped with automatic vacuum degree control system, to realize automatic water level and vacuum degree control, also reduce power consumption in long run.
Gravimetric dosing system is for choice, it can make operation easier, control pipe wall thickness and meter weight accurately, also can show the power consumption per unit weight for the pipe.
By changing some parts, extrusion line can also produce other PO pipes, such as PP, PPR, PERT, PB, PEX-B, etc.
By changing some parts, extrusion line can produce single layer or multi-layer, single strand and double strand pipe.
Technical Specifications
| Model | Pipe Range (mm) | Output Capacity (kg/h) | Main Motor Power (kW) |
|---|---|---|---|
| PE63 | Ø16 - 63 | 150 - 300 | 45 - 75 |
| PE110 | Ø20 - 110 | 220 - 360 | 55 - 90 |
| PE160 | Ø50 - 160 | 300 - 440 | 75 - 110 |
| PE250 | Ø75 - 250 | 360 - 500 | 90 - 132 |
| PE315 | Ø90 - 315 | 440 - 640 | 110 - 160 |
| PE450 | Ø110 - 450 | 500 - 800 | 132 - 200 |
| PE630 | Ø250 - 630 | 640 - 1000 | 160 - 250 |
| PE800 | Ø315 - 800 | 800 - 1200 | 200 - 355 |
| PE1000 | Ø400 - 1000 | 1000 - 1500 | 250 - 355 |
| PE1200 | Ø500 - 1200 | 1200 - 1800 | 355 - (250x2) |
| PE1600 | Ø710 - 1600 | 1800 - 2400 | (250x2) - (355x2) |
| PE2000 | Ø800 - 2000 | 2400 - 3000 | (355x2) - (400x2) |
